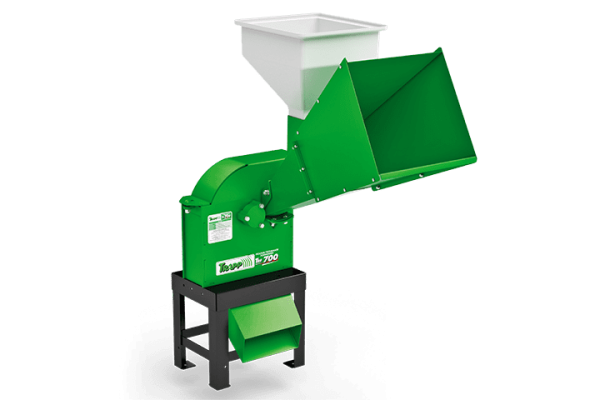

TRF 700
Forage Shredder
Features and differences
It has a cyclone outlet.
Belt drive power transmission.
Body built of 6.35-mm-thick sheet metal.
Cutting blades made of special steel.
Comes with: 1 grain funnel (22-liter capacity), 5 screens (4 fixed in the box: 0.8; 3; 5; 12 mm and 1 smooth “O” screen in the shredder), 4 pads, 2 belts, 1 motor pulley and 1 manual kit.
Optional accessories: Universal base and coupling for AT-1 tractor.
Finish: Anti-corrosion treatment on all parts subject to oxidation and painted with polyester powder coating polymerized in a 220°C furnace, ensuring a longer lasting finish.
Warranty: 12 months (3 months legal warranty, 9 months special TRAPP warranty).
Application:
Cutting and shredding forage, grinding grain seeds and husks, threshed corn, sugarcane, manioc branches, grass and others.
DATA SHEET
Motor: Electric
Output: 7.5hp or 10hp
Voltage: 220/440V, 220/380V or 380/660V
Frequency: 50 or 60Hz
Type: One-phase or Three-phase
Disc rotation: 3,000rpm (50Hz) or 3,600rpm (60Hz)
YIELD
0.8-mm screen: 120/170kg/h (Cornmeal)
3-mm screen: 500/700kg/h (Fine-ground meal)
5-mm screen: 600/1,000kg/h (Coarse-ground meal)
12-mm screen: 800/1,100kg/h (Ground whole corncob)
Smooth screen: 2,000/3,100kg/h (Greenfeed)
