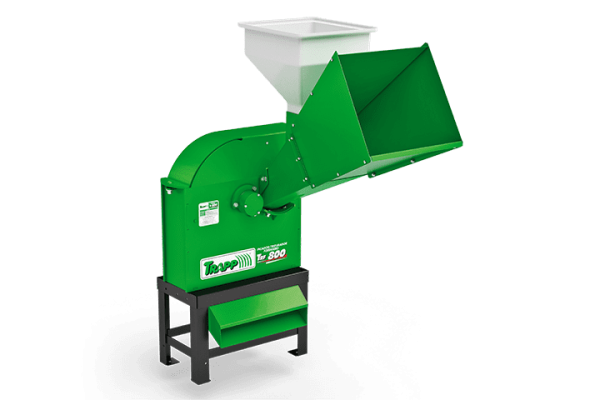

TRF 800
Forage Shredder
Features and differences
It has a cyclone outlet.
Belt drive power transmission.
Body built of 7.95-mm-thick sheet metal.
Cutting blades made of special steel.
Comes with: 1 grain funnel (22-liter capacity), 5 screens (4 fixed in the box: 0.8; 3; 5; 12 mm and 1 smooth “O” screen in the shredder), 4 pads, 3 belts, 1 motor pulley and 1 manual kit.
Optional accessories: Universal base and coupling for AT-2 tractor.
Finish: Anti-corrosion treatment on all parts subject to oxidation and painted with polyester powder coating polymerized in a 220°C furnace, ensuring a longer lasting finish.
Warranty: 12 months (3 months legal warranty, 9 months special TRAPP warranty).
Application:
Cutting and shredding forage, grinding grain seeds and husks, threshed corn, sugarcane, manioc branches, grass and others.
DATA SHEET
Motor: Electric
Output: 10hp or 12.5hp
Voltage: 220/440V, 220/380V or 380/660V
Frequency: 50 or 60Hz
Type: One-phase or Three-phase
Disc rotation: 2,800rpm (50Hz) or 3,300rpm (60Hz)
YIELD
0.8-mm screen: 180/200kg/h (Cornmeal)
3-mm screen: 750/950kg/h (Fine-ground meal)
5-mm screen: 900/1,150kg/h (Coarse-ground meal)
12-mm screen: 900/1,200kg/h (Ground whole corncob)
Smooth screen: 3,200/4,200kg/h (Greenfeed)
