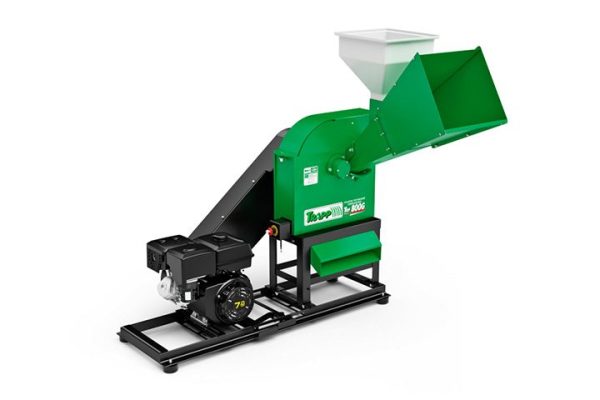

TRF-800G (Motor-TRAPP)
Forage Shredder
Features and differences
It has a cyclone outlet.
Belt drive power transmission.
Body built of 7.95-mm-thick sheet metal.
Cutting blades made of special steel.
Equipped with TRAPP motors (Lifan), powered by regular gas (without additives).
Lubricant: SAE 20W50 Oil – First change after the first 5 hours of operation and every 50 operating hours thereafter, with air filter maintenance.
Comes with: 1 grain funnel (22-liter capacity), 5 screens (4 fixed in the box: 0.8; 3; 5; 12 mm and 1 smooth “O” screen in the shredder), 4 pads, 3 belts, 1 motor pulley and 1 manual kit.
Optional accessories: Universal base and coupling for AT-2 tractor.
Finish: Anti-corrosion treatment on all parts subject to oxidation and painted with polyester powder coating polymerized in a 220°C furnace, ensuring a longer lasting finish.
Warranty: 12 months (3 months legal warranty, 9 months special TRAPP warranty).
Application:
Cutting and shredding forage, grinding grain seeds and husks, threshed corn, sugarcane, manioc branches, grass and others.
DATA SHEET
Motor: Gasoline
Output: 15hp
Tank capacity: 6.5 liters
Oil capacity in the crankcase: 1.1 liters
Average consumption: 3l/h
Disc rotation: 3,300rpm
YIELD
0.8-mm screen: 180/200kg/h (Cornmeal)
3-mm screen: 750/950kg/h (Fine-ground meal)
5-mm screen: 900/1,150kg/h (Coarse-ground meal)
12-mm screen: 900/1,200kg/h (Ground whole corncob)
Smooth screen: 3,200/4,200kg/h (Greenfeed)
