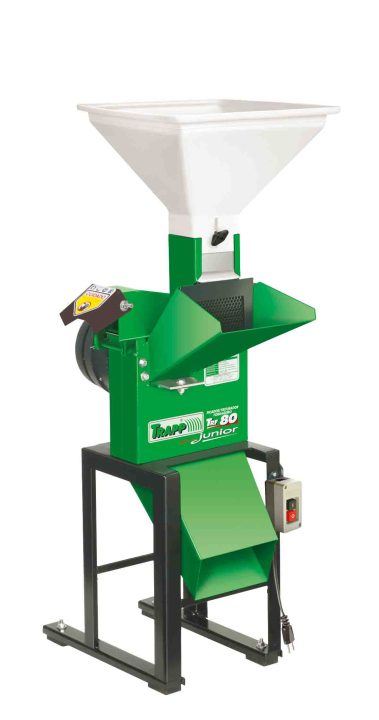

TRF 80 Junior
Forage Shredder
Features and differences
Direct coupling to the motor.
Body built of 4.25-mm-thick sheet metal.
Cutting blades made of special steel.
Two-pole switch that allows full isolation regardless of the position of the plug in the outlet.
Voltage: Motors equipped with voltage selector for 127/220V only.
Comes with: 1 grain funnel (13-liter capacity), 5 screens (4 fixed in the box: 0.8; 3; 5; 12 mm and 1 smooth “O” screen in the shredder), 4 pads, 1 manual kit.
Finish: All parts receive anti-corrosion treatment and are painted with polyester powder coating polymerized in a 220°C furnace, ensuring a longer lasting finish.
Warranty: 12 months (3 months legal warranty, 9 months special TRAPP warranty).
Application:
Cutting and shredding forage, grinding grain seeds and husks, threshed corn, sugarcane, grass and others.
DATA SHEET
Motor: Electric
Output: 1.25hp or 2hp
Voltage: 127/220V or 220V
Frequency: 50 or 60Hz
Type: One-phase
Speed: 3,000rpm (50Hz) or 3,600rpm (60Hz)
YIELD
0.8-mm screen: 30/60kg/h (Cornmeal)
3-mm screen: 130/300kg/h (Fine-ground meal)
5-mm screen: 250/700kg/h (Coarse-ground meal)
12-mm screen: 150/430kg/h (Ground whole corncob)
Smooth screen: 500/1,200kg/h (Greenfeed)
